Even if you aren't interested in the biology of spiders, please check out the images in this blog posting. These small and often loathed creatures have some of the most remarkable anatomy you will find on the planet, and they are in the most mundane places - like around the porch light in my backyard.
In my previous blog (August 20, 2012) I showed images of a small Theridiid - a cobweb spider. The images in this posting were made with the scanning electron microscope here at Eastfield College.
 |
| Prosoma (Dorsal) 70x
A shot of the dorsal surface of the cephalothorax or prosoma. Even at 70x you can immediately see that this spider does indeed have 8 eyes, not just the 6 I thought I saw with the light dissecting scope.
|
 |

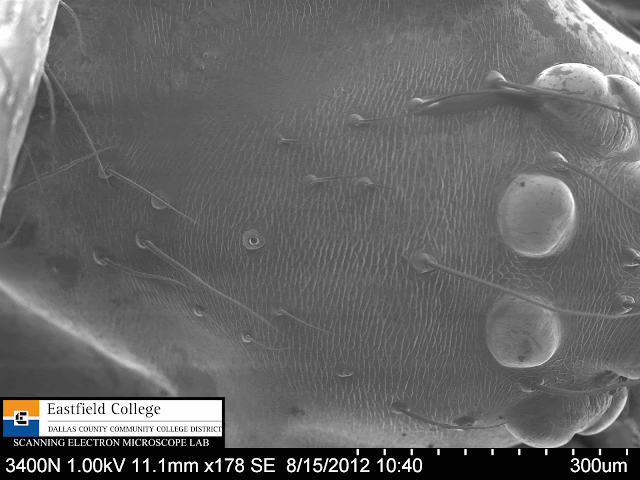

| Prosoma 178x
Several hairs on the prosoma and one obvious sensory pit.
|
 |

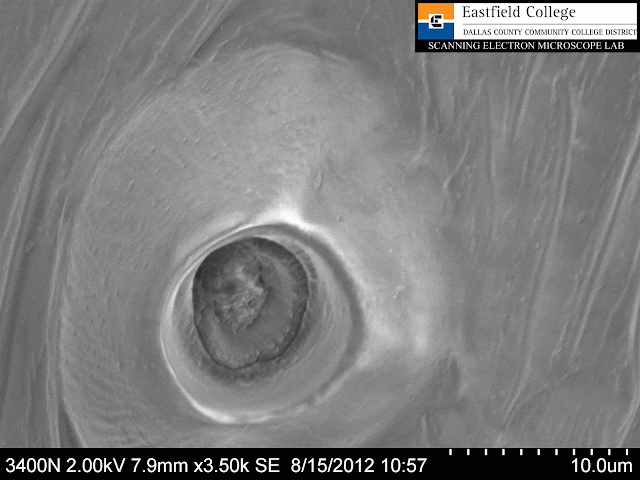

| Sensory Pit 3,500x Small sensory pit on dorsal surface of prosoma. Distance between marks on scale = 1 micron. |
 |

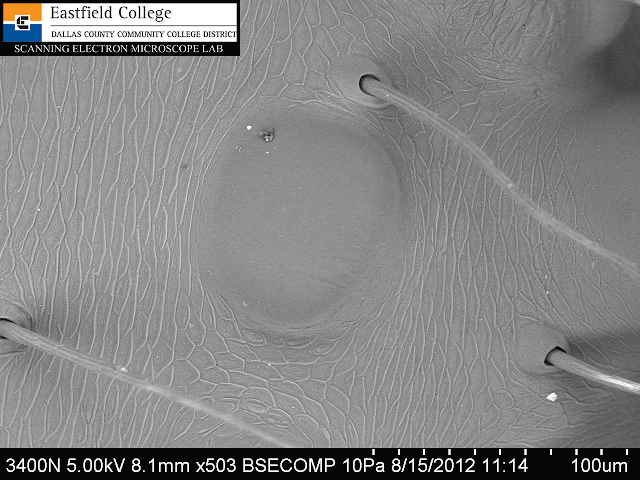

| PME 503x Spiders do not have compound eyes like insects. This image is of the PME or median eye on the posterior eye row. |
 |

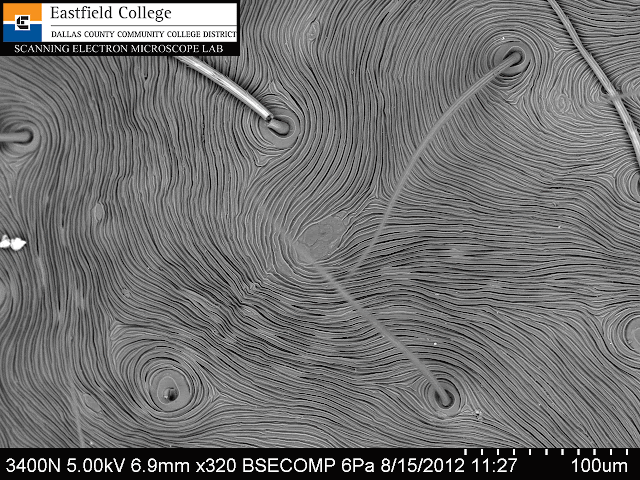

| Dorsal Opisthosoma 320x Image of the peak of the opisthosoma or abdomen. |
 |
| Anterior Opisthosoma 190x To make this image I rotated the spider so he was facing me - the bright structure at the bottom of the image is the prosoma. Basically I was shooting electrons right over his head and onto the abdomen. |
 |
| Side portrait 47x |
 |
| Pedicel 250x This is a side shot of the spider focusing in on the connection, or pedicel, between the two body parts. In this image the spider is facing to the left. Prosoma to the left, opisthosoma to the right. |
 |
| Prosoma or cephalothorax 90x The dyad of eyes (pairing) is very obvious in the micrograph. The dyad is composed of the ALE and the PLE - the lateral eye of the anterior eye row and the lateral eye of the posterior eye row. |
 |

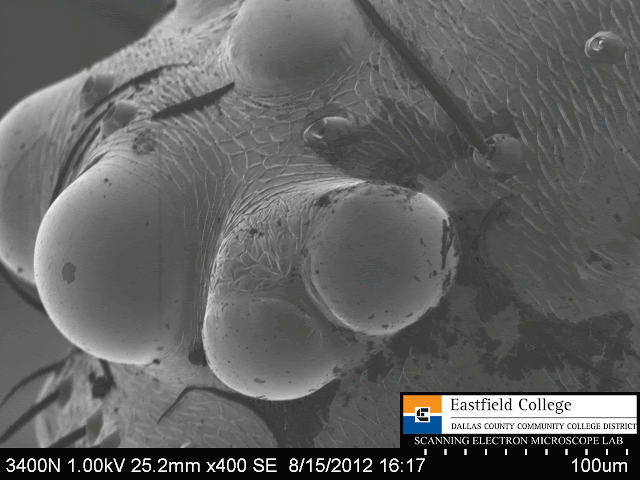

| ALE/PLE Dyad
400x
The dyad is composed of the ALE and the PLE - the lateral eye of the anterior eye row and the lateral eye of the posterior eye row.
|
 |
| Ventral Abdomen - Epigastric Furrow 60x |
 |
| Epigastric furrow and epigynum 300x Ventral view of anterior region of abdomen of opisthosoma. The large fold across the photo is the epigastric furrow and the opening with the concentric rings around it is the epigynum, or reproductive opening of the female. |
 |
| Epigynum 804x |
 |
| Spinnerets 200x There are three pairs of spinnerets. Most obvious are the large, paired anterior spinnerets at the top of the image and the large, paired posterior lateral spinnerets just below them. (The football shaped structure at the bottom of the spinnerets is the anus.) Not so obvious are the smaller, paired posterior median spinnerets between the larger PLS. |
 |
| Anus and Posterior Spinnerets 471x Posterior lateral and median spinnerets at top of image. |
 |
| Close up of Median Posterior Spinnerets 1,090x |
 |

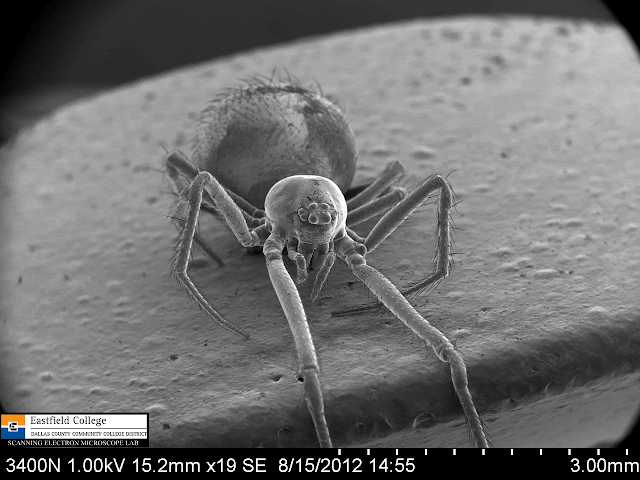

| Portrait 19x I wanted to image the spider head on so I draped its front pair of legs over the mount. |
 |

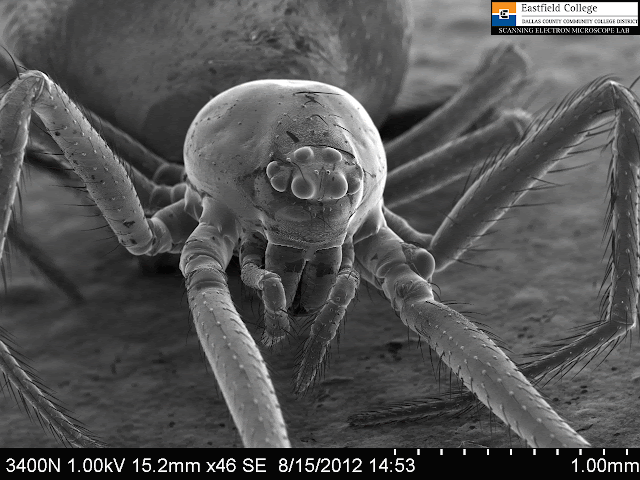

| Theridiid Head Shot 46x |
 |
| Eye Arrangement 230x Image of the two row of eyes on this spider - the anterior eye row (AER) and the posterior eye row (PER). |
 |
| Close up of Posterior Median Eyes (PME) 470x Note the sensory pits above the eyes. |
Now for some basic spider leg anatomy!
This study focuses on the second leg (simply because it was in the proper position).
 |

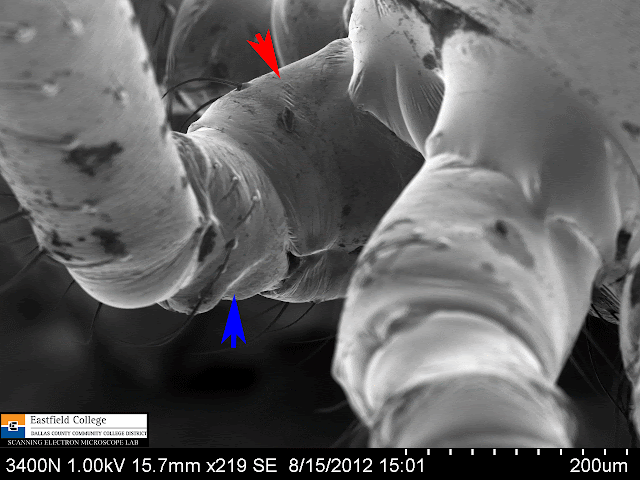

| Coxa and Trochanter 219x The coxa is indicated by the red arrow and the trochanter by the blue arrow. |
 |
| Femur 70x |
 |

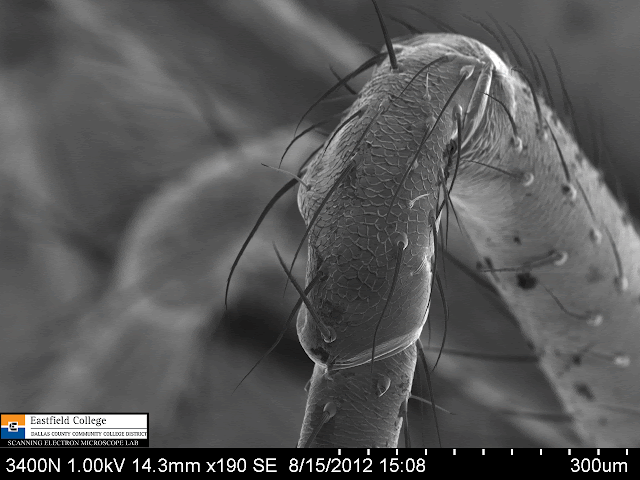

| Patella (Knee) 190x |
 |

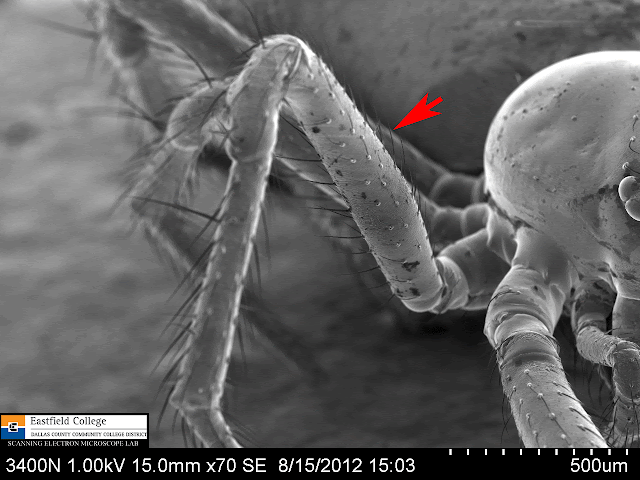

| Tibia 80x |
 |

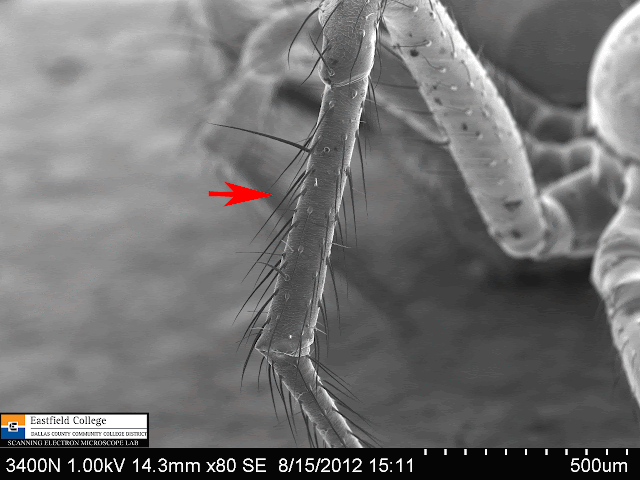

| Close up of hairs on tibia 422x |
 |
| Egg Sac 30x In this image the egg sac has been teased open showing the spiderlings inside. In the upper right of the photo is a spiderling who was outside of the egg sac. [Technical note: The difference in brightness of the top and bottom parts of this image is caused by the specimen accumulating a charge. Spiderlings at the top of the photo were not in contact with the mounting so they became negatively charged, which causes them to glow. Not what I would have liked, but still an interesting image] |
 |
| Spiderling Portrait 120x Distance between marks on scale = 40 microns. This guy is little! |
 |
| Egg Sac Silk 750x |
 |

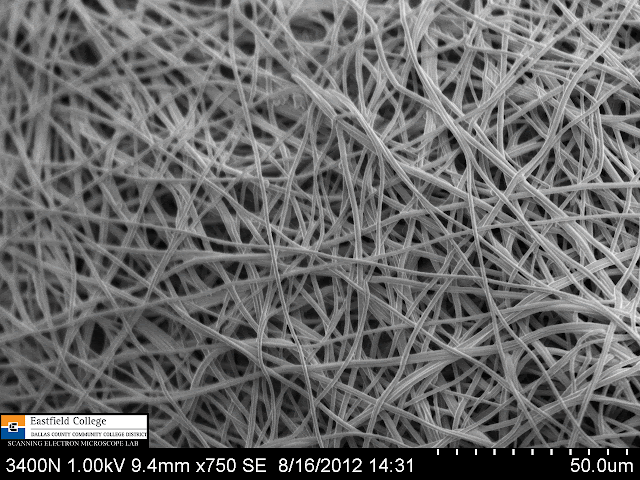

| Egg Sac Silk 2,100x Diameter of silk strands less than 2 microns
After two days of imaging and a couple of days of selecting images for the last two blogs, I can truthfully say that I have totally satisfied my spider jones . . . for now.
